Heavy-Duty Garage Workbench: Supports Car Parts & Heavy Tools

Understanding Weight Capacity and Structural Strength in Garage Workbenches

What Determines Load Capacity Requirements for Heavy-Duty Workbenches?

The load capacity of a garage workbench needs to be able to handle whatever heavy tools or car parts are going to sit on it. Most engine blocks weigh between 350 to 600 pounds, so the bench should definitely hold at least 1,000 pounds if someone plans to put a hydraulic press on there too. For those working with metal and using anvil setups, they'll need something even stronger, probably over 1,500 pounds capacity according to what the Machinery Reliability Institute reported back in 2023. Putting too much weight on a bench that wasn't built for it can lead to all sorts of problems down the road from broken benches to serious injuries in the workshop.

Key Factors Influencing Load Capacity: Frame Design, Materials, and Legs

Three core elements determine a workbench’s load-bearing capability:

• Frame gauge: 12-gauge steel frames support 550–700 lbs/ft² (PSF), compared to 16-gauge’s 350–450 PSF
• Leg design: Triangulated legs with cross-bracing improve weight distribution by 40% over straight-leg designs
• Surface material: 1.5" thick hard maple withstands 650 PSF, while 14-gauge steel tops handle 900+ PSF based on industry testing

Recommended Weight Ratings for Automotive Repair and Metal Fabrication Tasks

A 2022 survey of 120 automotive technicians found that 68% experienced bench deformation when using surfaces rated below their actual workload.

How High-Capacity Workbenches Maintain Stability Under Heavy Loads

The best garage workbenches have multiple support systems built right into them. Think about those 3/16 inch steel aprons that get bolted onto those sturdy 4x4 vertical posts, plus those thick L-brackets (about a quarter inch) placed strategically at all the stress points where things tend to bend or break. According to ANSI guidelines from 2019, these benches need to be rated for static loads that are actually three times what they'll face dynamically. So if a bench is rated for 2,000 pounds, it should comfortably take around 660 pounds of moving weight when someone's working on transmissions or heavy engine components. Another smart design feature is center loading with those big 8 inch foot pads. This setup cuts down on ground pressure by nearly half compared to when weight is distributed along the edges only. Mechanics know this makes a real difference when dealing with heavy tools and parts that shift around while working.

Durable Construction Features of Heavy-Duty Garage Workbenches

Steel Gauge Explained: Comparing 10-Gauge vs. 12-Gauge Frames for Longevity

The thickness of steel makes all the difference when it comes to how long something lasts and what kind of weight it can handle. Take a look at 10-gauge steel frames versus their 12-gauge counterparts. The thicker 10-gauge option gives about 30% more strength overall, holding around 3,500 pounds before showing signs of stress. This extra strength comes from being just a bit thicker at 0.134 inches, which helps keep things from bending out of shape even under heavy pressure. Mechanics working on big projects like welding stations or complete engine rebuilds will want that added reinforcement. On the flip side, most basic repair work gets by fine with 12-gauge steel that's only 0.104 inches thick. And interestingly enough, recent tests showed that these heavier duty 10-gauge frames still hold up pretty well after ten years of constant use, maintaining about 95% of their original stiffness according to industry data from last year.

Reinforced Legs and Bracing Systems for Enhanced Structural Integrity

Workbenches built for heavy duty tasks usually have those triangular leg braces plus crossbeams across them so they don't wobble around when someone's doing serious torque work. Take models with those thick 4x4 steel legs and added gusset plates for instance these tend to stay stable about 40 percent better when things get shaken up during operations like using hydraulic presses or pulling bearings apart. According to findings published in last year's Garage Equipment Study, adding vertical supports spaced roughly every two feet cuts down on surface movement problems by nearly two thirds over standard frames without this reinforcement.

Material Options: Steel, Hardwood, and Bamboo Work Surfaces for Automotive Use

• Steel tops (14–16 gauge): Resistant to oil, sparks, and impact; ideal for transmission overhauls
• Hardwood surfaces (1.5" maple or oak): Absorb vibrations during metal fabrication and protect delicate parts
• Bamboo composite: Eco-friendly alternative with 1,200-lb load ratings but limited resistance to solvents and heat

While high-grade steel dominates commercial repair shops, hardwood provides a balanced mix of durability and functionality for DIY enthusiasts.

Welded vs. Bolted Frames: Evaluating Long-Term Durability for Garage Workbenches

Welded frames deliver superior rigidity for stationary setups handling engine blocks or suspension systems, maintaining alignment within <0.5° under load. In contrast, bolted joints may develop 2–3mm play after 500+ load cycles due to fastener loosening. For permanent installations, continuous seam welding extends lifespan by 15–20 years compared to threaded fastener systems.

Optimal Size, Surface Area, and Layout for Automotive Workbenches

Ideal Dimensions for a Garage Workbench Handling Large Car Components

When working on cars, mechanics really need workbenches big enough to fit those huge engine blocks and transmission units they deal with daily. Most industry standards suggest going for something between six and ten feet long so there's actually room to move around during assembly tasks without getting stuck. Depth matters too – somewhere around twenty four to thirty inches gives good access to all the tools and parts scattered across the bench surface. As for height, it makes sense to set it at about where the elbows naturally hang when standing – usually around thirty four to thirty six inches works well for detailed repairs according to what most pros find comfortable. Some shops dealing with heavier stuff like welding jobs or running hydraulic equipment will go even bigger, sometimes pushing out to forty two inches tall just so workers can stand comfortably while doing their thing without constantly bending over.

Balancing Spacious Work Surfaces with Structural Support Under Load

Work tables need to hold their shape when supporting anywhere from 500 to 1,000 pounds worth of car parts. The best ones use high strength steel frames reinforced with crossbars to stop them from bending over long distances. For the legs, most manufacturers go with 10 to 12 gauge steel since it gives good stability without being too heavy. Instead of regular L brackets, many shops install triangular gussets at connection points. These actually spread out the weight better and cut down on stress points by around 40% according to testing. When building for multiple layers of work, experienced designers will typically bump up the table top thickness to between 2 and 3 inches. They also build in extra capacity, usually making sure the table can handle at least 1.5 times whatever load they expect during normal operations.

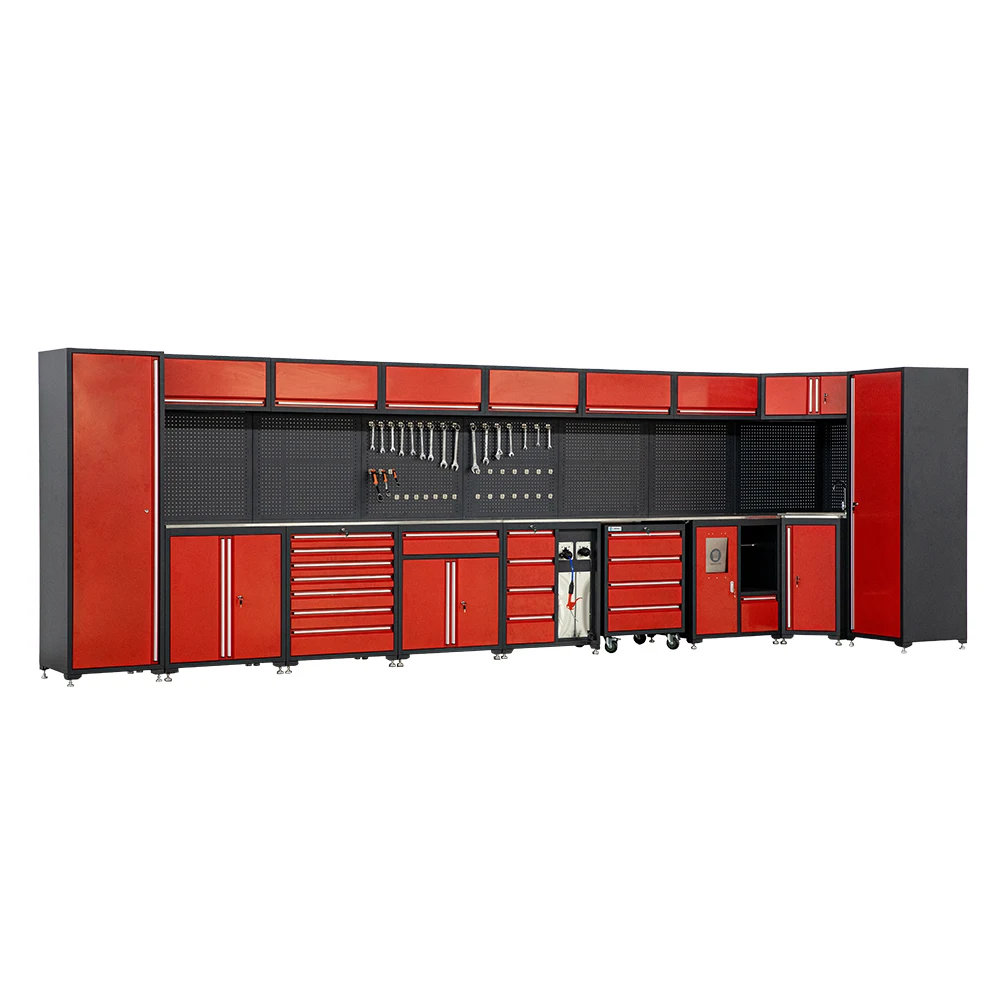

Integrated Storage and Organization Solutions for Heavy-Duty Workbenches

Built-In Storage: Drawers, Shelves, and Tool Trays for Efficient Access

Workbenches with integrated drawers and shelves reduce tool search time by 30–40 minutes daily in professional automotive shops (Workspace Efficiency Report, 2024). These systems organize wrenches, sockets, and power tools in dedicated zones beneath the surface or behind pegboards, keeping heavy items like brake rotors and suspension components secure yet accessible.

Modular Accessories and Pegboards to Maximize Tool Organization

Adjustable pegboard layouts and slide-out trays let mechanics customize storage for specific jobs–a practice used by 68% of professional garages managing mixed workloads. This method reduces clutter by 40% compared to traditional tool chests while preserving quick access to frequently used repair tools.

Case Study: How a Professional Auto Shop Improved Efficiency with Smart Storage

At a local auto shop with 12 service bays, technicians noticed their tool search times dropped dramatically after they added vertical storage racks and installed cabinets underneath their steel workbenches. According to a recent efficiency study, each mechanic ends up saving around 52 hours every year just because those transmission wrenches and welding equipment are now right where they need them. Shops across the country have seen similar results too. Most garages that reorganized their workspace this way report better productivity rates, with about seven out of ten shops seeing noticeable improvements in workflow when working on engine overhauls or custom fabrication projects.

Mobility, Placement, and Real-World Applications in Garage Environments

Rolling Workbenches: Selecting Locking Casters Rated for Heavy Loads

Getting around the shop depends heavily on good quality casters that can actually hold up under the weight of a fully loaded workbench. Steel ones that handle over 1000 pounds keep their shape when moving things around, which matters a lot. The best ones have those two stage locks that really stop them from drifting when someone needs to work precisely, say when taking apart an engine or something delicate like that. In auto shops specifically, wheels between five and six inches made from polyurethane tend to work best. They stand up to all that grease mess and still manage to soak up floor vibrations even when the concrete isn't so flat.

Mobility vs. Stability: Finding the Right Balance for Your Garage Setup

Workshop equipment that combines retractable wheels with stabilizing jacks lets technicians switch back and forth between mobile and stationary setups pretty quickly. According to recent industry data from last year's Machinery Trends Report, around 7 out of 10 commercial repair shops have started using those adjustable feet to keep heavy duty workbenches (typically over 800 pounds) stable when working on car suspensions, yet still want the ability to move them around as needed. For folks working in home garages though, there's another option gaining popularity these days too. Lockable swivel casters that make contact at four points provide good stability for their tools and materials but don't completely take away the ability to roll things where they need to go. Many DIY mechanics find this setup works best for their space constraints and budget limitations.

Trend Analysis: The Rise of Mobile Workstations in DIY and Commercial Garages

Mobile workstation adoption increased 40% year-over-year (2023 Industry Report), driven by compact garage layouts and demand for multifunctional spaces. Professionals now deploy modular systems with detachable power tool carts, while DIYers favor compact rolling benches with fold-down extensions for temporary tasks like welding or transmission rebuilds.

Real-World Use Cases: Engine Rebuilding, Suspension Work, and Welding Prep

Mobile workbenches excel where workspace reconfiguration is essential:

• Engine rebuilding: Heavy-duty frames with 1,500 lb capacity support V8 blocks while enabling tool repositioning
• Suspension work: Locking casters prevent unwanted movement during spring compressor operation
• Welding prep: Heat-resistant steel surfaces transition smoothly between grinding and assembly stations

Strategy: Choosing the Right Garage Workbench Based on Primary Use and Tool Load

Match mobility features to your primary tasks:

For evolving needs, prioritize modular designs that support add-on shelving or tool trays without compromising structural integrity.

FAQ

• What is the optimal load capacity for a garage workbench? The optimal load capacity depends on the intended tasks. For heavy automotive tasks, at least 1,000 pounds is recommended, while general use may require less.
• Why are reinforced legs and bracing systems important? Reinforced legs and bracing systems enhance structural integrity and prevent wobbling during heavy-duty tasks.
• What are the benefits of integrated storage in workbenches? Integrated storage reduces search time for tools and organizes them efficiently, enhancing overall productivity.
• How does steel gauge affect workbench durability? Thicker steel gauges provide more strength and longevity, with 10-gauge offering 30% more strength than 12-gauge.
• What role do mobility features play in garage workbenches? Mobility features like locking casters allow for flexibility in moving the workbench or keeping it stable as needed.
